SOUND MAGUS EP16S DSP
  • SOUND MAGUS EP16S DSP
  • SOUND MAGUS EP16S DSP
SOUND MAGUS EP16S DSP

SOUND MAGUS EP16S DSP

$1,799.00 $1,999.00

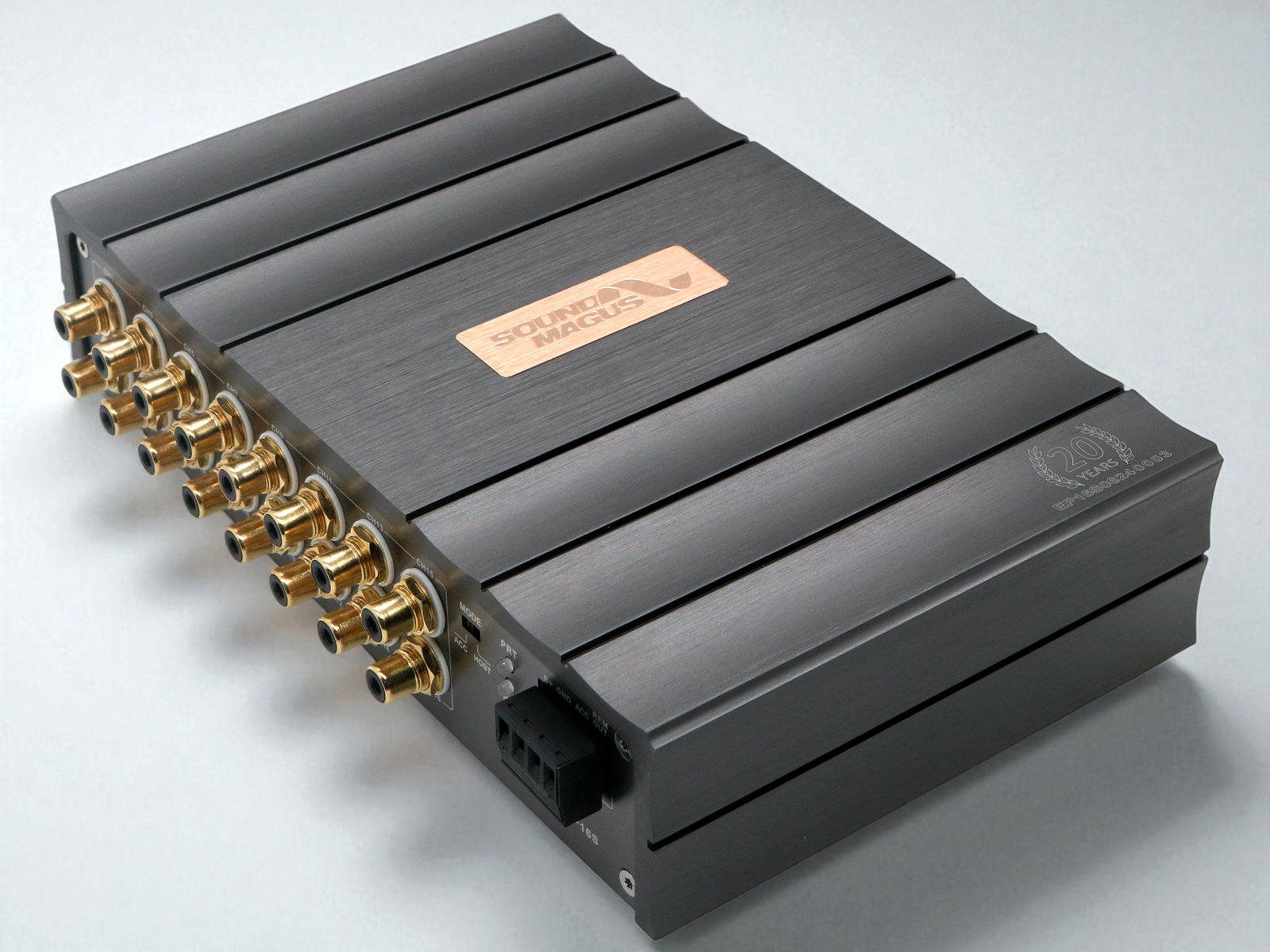

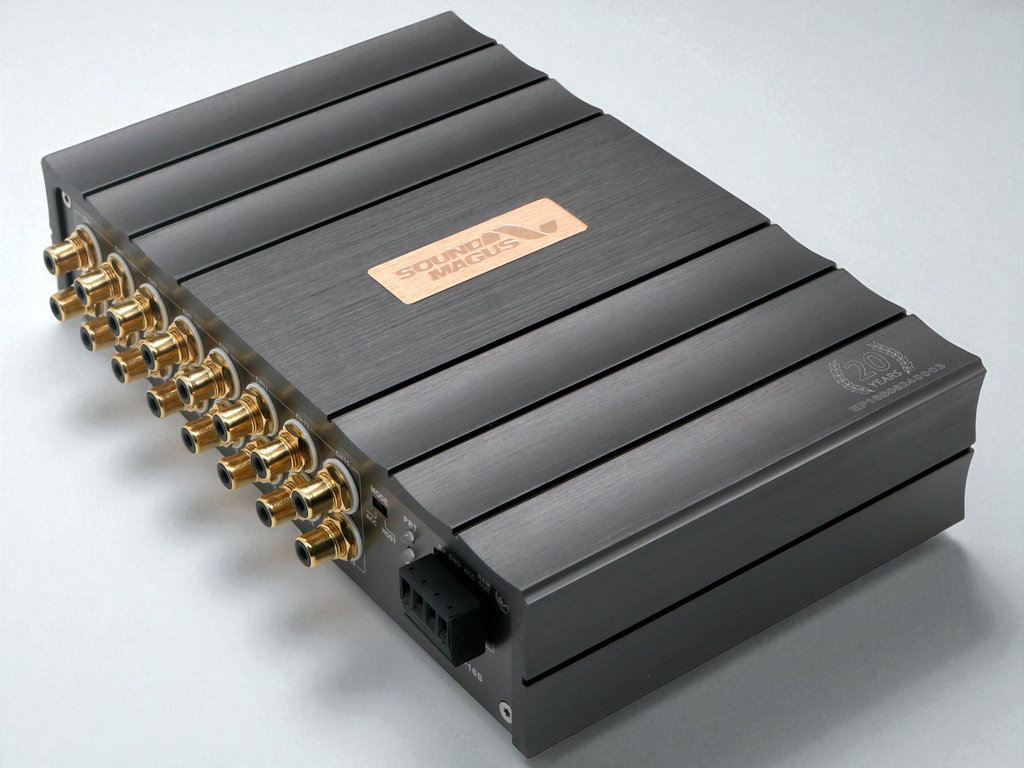

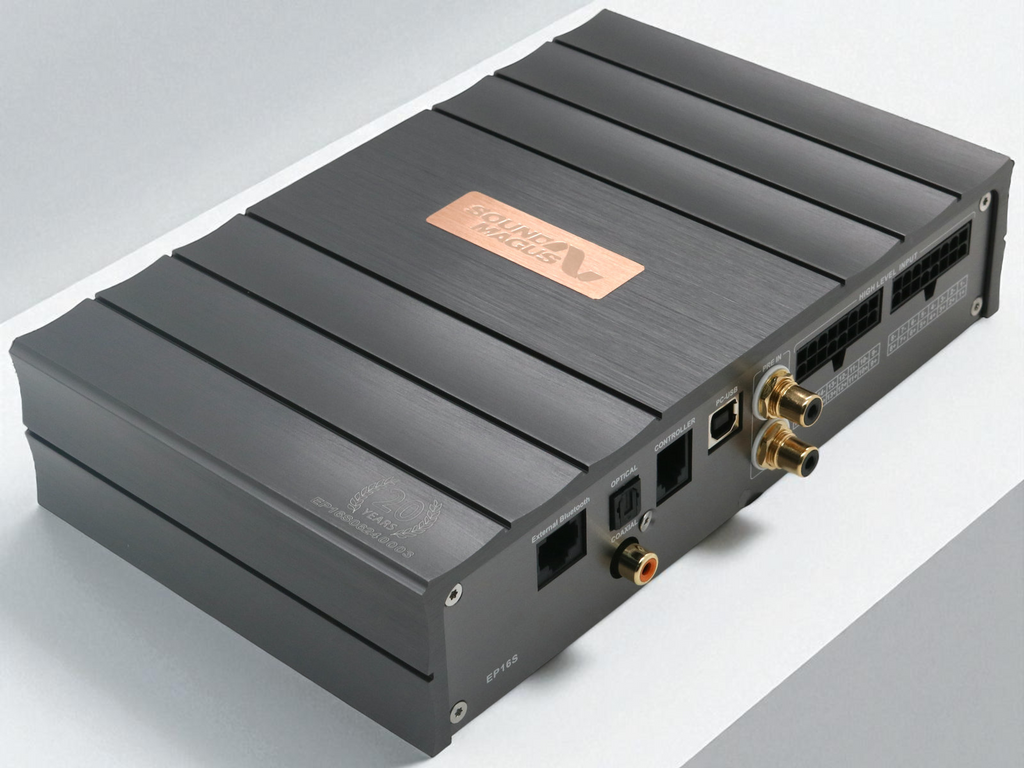

Sound Magus EP16S – Pure DSP Processor

Executive Summary

The Sound Magus EP16S represents the pinnacle of digital signal processing in the automotive audio space. As a premium top-of-the-line DSP, it is designed to deliver uncompromising control, pristine sound quality, and advanced flexibility for both audiophiles and professional installers. With 16 fully independent channels, high-resolution audio inputs, and robust tuning software, the EP16S empowers users to achieve reference-level system performance in any vehicle.

Key Features at a Glance

  • 16-channel pure DSP with low-level RCA outputs.

  • Dual digital inputs (optical & coaxial, 96kHz/24-bit).

  • Analog inputs: 16-channel high-level (up to 18Vrms) + 2-channel AUX.

  • Advanced Bluetooth 5.1 / 5.0 support with AAC, aptX-L, aptX-HD, SBC.

  • Professional-grade tuning tools: 31-band EQ per channel, variable crossovers, and time alignment.

  • Ultra-low distortion (THD 0.01%) and wide frequency response (20Hz–40kHz).

  • Compact chassis: 137 × 223 × 50 mm.

Engineering Specifications

Power & Control

  • Operating Voltage: 7.5 – 16V DC (ACC/DC offset auto turn-on).

  • Quiescent Current: 0.44A; Standby Current <0.5mA.

  • REM Out: 12V DC (380mA).

  • Fuse Rating: 0.9A.

Inputs

  • High-Level Analog: 16 channels, up to 10Vrms or 18Vrms.

  • Low-Level AUX: 2 channels, 2.0Vrms.

  • Digital Audio: 1× Optical + 1× Coaxial (96kHz / 24-bit).

  • Bluetooth: Built-in 5.1 (SBC/AAC); external module 5.0 (AAC, aptX-L, aptX-LL, aptX-HD, MP3, SBC).

Outputs

  • Channels: 16-channel RCA outputs.

  • Output Level: 5Vrms @14.4V, 1kHz, 1% THD.

  • Frequency Response: 20Hz–40kHz (±3dB).

  • Signal-to-Noise Ratio: >95dB.

  • Channel Separation: ≥105dB @1kHz.

  • Distortion: 0.01% (1Vrms output, 1kHz).

DSP Processing Tools

  • Crossovers: Independent HPF & LPF per channel; slopes 6–48dB/Oct; filter types: Linkwitz-Riley, Bessel, Butterworth.

  • Equalization: 31-band EQ per channel; parametric & graphic options; gain ±12dB in 0.1dB steps.

  • Time Alignment: Adjustable up to 20ms (692cm / 272.8 inch).

  • Phase: 0–360° control per channel.

  • Volume: Individual channel control (–60 to 0dB); master volume (–60 to +6dB).

  • Shutdown Delay: 0–255s.

Tuning & Control

  • Software: PC (driverless install) + smartphone app (via external Bluetooth).

  • Controllers: Wired controller optional, smartphone app remote available.

Applications

The EP16S is engineered for audiophiles, competition vehicles, and premium OEM upgrade solutions requiring:

  • Precision sound tuning with uncompromising fidelity.

  • Large, complex multi-channel systems (up to 16 independent outputs).

  • Integration with modern source units (digital + Bluetooth streaming).

Conclusion

The Sound Magus EP16S Pure DSP is more than just a processor—it’s the control hub for advanced car audio systems, combining powerful digital inputs, professional-grade tuning flexibility, and immaculate sound reproduction. For installers and enthusiasts who demand the best, the EP16S delivers performance that defines the future of automotive audio processing.
